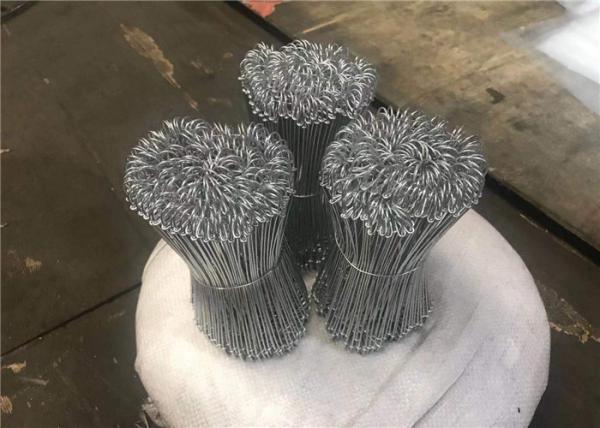

16GA Length 6”Annealed Wire Easier To Twist Binding Galvanized
Double Loop Wire Ties
Galvanized Double Loop Wire Ties introduction:
Galvanized Double Loop Wire Ties is also known as tie wire or binding wire. It is Material low
carbon steel wire, Surface Black annealed, copper, galvanied or PVC
coated, Feature It is easy to operate, enhances the working
efficiency reduces pollution,Use The loop wire es as a binding wire
used in packing or construction.
We have the specific production workshop of Wire Ties. We can
manufacture all of sizes with different finishes. We will also
custom-produce loops and lengths to your specifications.
We have became the biggest Wire Ties Manufacturer in China.
Galvanized Double Loop Wire Ties Data :
Product name: | Double Loop Rebar Wire,Loop Wire,Bar Tie,Black Annealed Wire |
Material | Low carbon steel material |
Surface: | Black , galvanized , pvc coated |
Common diameter: | 10#,12#,14#,16#,17#,18#,20# customerized |
Raw material: | Q195 Q235 SAE1006 SAE1008 |
Packing: | general 500 or 1000pcs/bundle,plastic bag,then several bags in a
carton with pallets,also just woven bags with pallets Our packing also can be as per buyer's requirement. |
Usage : | tie wire |
Types: | copper double loop tie wire, galvanized double loop tie wire, PVC coated double loop tie wire, stainless steel double loop tie wire, etc. |
Wire diameter: | 0.7 mm - 4 mm |
Length: | from 4" - 24" |
Galvanized Double Loop Wire Ties specification as blows :
Gauge | SWG | BWG | AWG | |||
Inch | MM | Inch | MM | Inch | MM | |
8 | 0.16 | 4.046 | 0.165 | 4.191 | 0.1285 | 3.264 |
9 | 0.144 | 3.658 | 0.148 | 3.759 | 0.1144 | 2.906 |
10 | 0.128 | 3.215 | 0.134 | 3.404 | 0.1019 | 2.588 |
11 | 0.116 | 2.946 | 0.12 | 3.048 | 0.0907 | 2.305 |
12 | 0.104 | 2.642 | 0.109 | 2.769 | 0.0808 | 2.053 |
13 | 0.092 | 2.337 | 0.095 | 2.413 | 0.072 | 1.828 |
14 | 0.08 | 2.032 | 0.083 | 2.108 | 0.0641 | 1.628 |
15 | 0.072 | 1.829 | 0.072 | 1.829 | 0.0571 | 1.45 |
16 | 0.064 | 1.626 | 0.065 | 1.651 | 0.0453 | 1.291 |
17 | 0.056 | 1.422 | 0.058 | 1.473 | 0.0403 | 1.15 |
18 | 0.048 | 1.219 | 0.049 | 1.245 | 0.0359 | 1.024 |
19 | 0.04 | 1.016 | 0.042 | 1.067 | 0.032 | 0.912 |
20 | 0.036 | 0.914 | 0.035 | 0.839 | 0.0285 | 0.812 |
21 | 0.032 | 0.813 | 0.032 | 0.831 | 0.02535 | 0.723 |
22 | 0.028 | 0.711 | 0.028 | 0.711 | 0.02256 | 0.644 |
23 | 0.024 | 0.61 | 0.025 | 0.635 | 0.02256 | 0.573 |
24 | 0.022 | 0.559 | 0.022 | 0.559 | 0.02011 | 0.511 |
25 | 0.02 | 0.508 | 0.02 | 0.508 | 0.01791 | 0.455 |
26 | 0.018 | 0.457 | 0.018 | 0.457 | 0.01594 | 0.405 |
Galvanized Double Loop tie Wire information:
A, Material low carbon steel wire
B , Wire diameter 1mm-2mm
C , Length4-24inch
D , Surface Black annealed, copper, galvanied or PVC coated
E , Feature It is easy to operate, enhances the working efficiency
reduces pollution
F, Use The loop wire es as a binding wire used in packing or
construction
Galvanized Double Loop Wire Ties Usage / Application
Use a kind of wire twister to tie the two ends of the double loop
wire together.
Loop tie wire How to use: Hook the two rings of the buckle with a
hooked wire tool and tighten it in one direction.
Used as tie wires to bind bags and rebars.
Used in the family garden to bind branches of plants.Securing trees, wines and creepers o supports and trellises
Applied in the farm to bundle twigs.
erecting and joining support structur
Tying bags or as a ma or laundry bag seal
Finish of loop tie wire can be black annealed loop ie wire. galvanized loop te wire or PVC coated loop wire.
Small coil wire tie finds most uses in binding of different materials especially for daily use
Technical principle of Galvanized Double Loop Wire Ties :
Because the loop tie wire is suitable for binding, the raw
materials are all annealed at high temperature, so the product has
better tensile strength and elongation, and the user can have
better experience.
Solution to blackening of galvanized wire:
One is to do a good job in the packaging of galvanized wire to
avoid bumping and ensure the integrity of zinc layer;
The second is to pay attention to the storage and use environment
of galvanized wire products. The specifications of galvanized wire
should be selected according to the actual environmental standards;
Third, the production site of galvanized wire products shall be
clean and tidy. How much is the galvanized wire? The production
shall be carried out according to scientific operation methods. The
operators shall wear the required clothes.If it is hot-dip
galvanized wire products, we must do a good job in passivation
treatment, will be able to effectively prevent discoloration,
prolong Discoloration method to do in place, can solve the problem
of discoloration.
Galvanized Double Loop Wire Ties Process :
First, the raw material is wire rod Q195, which is processed and
thinned. In the second drawing process, the wire diameter required
by the customer is reached. At this time, it is about 100kg /
plate. Put the wire in the heating furnace for heating and
annealing treatment
Our services
Qingrui has the best factory price in the early stage. When the
order is put into production, the raw material quality inspection
data will be sent to the customer for quality inspection and
confirmation before production. When the production reaches half,
the video will be sent to the customer for product inspection.
Before the delivery of large goods, the quality inspection and
packaging acceptance and confirmation will be carried out with the
customer, and the overall full name will be reported to the
customer for the real-time production progress of factory
production.
Galvanized Double Loop Wire Ties Packaging Details
1. Bundled together by tie wire.
2. plastic inside and cartons outside.
3. plastic inside and woven bags outside.
4. water-proof paper inside and woven bags outside
5. or as your demand
![]() |
